How to Use Object Mode

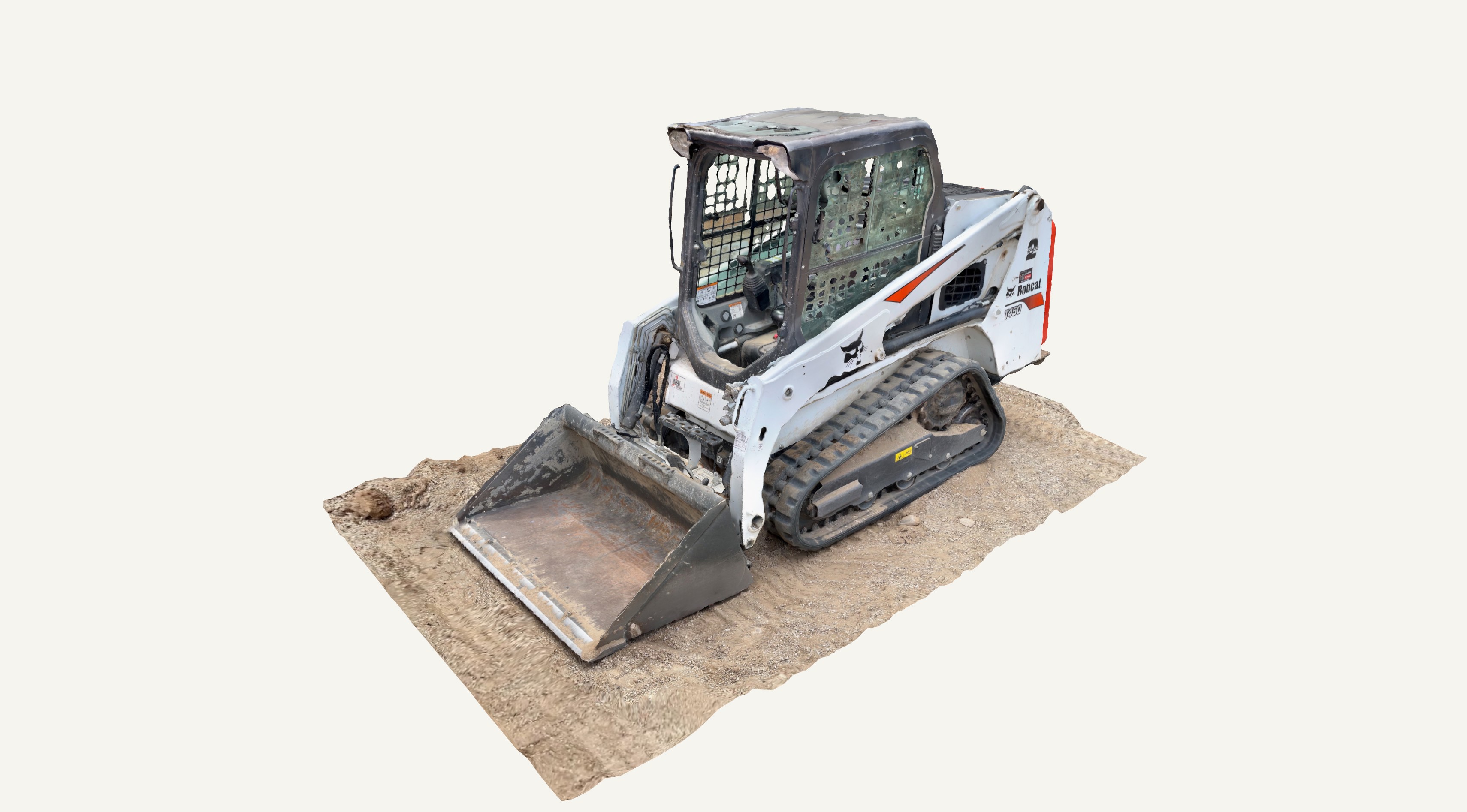

Object Mode photogrammetry uses a series of standard photos taken from various angles to create detailed 3D reconstructions of objects. These photos are processed to generate high-quality 3D models with accurate geometry and textures.

Plan Availability

Object Mode availability varies by platform and subscription plan.

Platform Availability

Plan iOS Web Android
Free ✅ ✅ Photogrammetry Only
Basic ✅ ✅ Photogrammetry Only
Pro LEGACY ✅ ✅ Photogrammetry Only
Business ✅ ✅ Photogrammetry Only
Enterprise ✅ ✅ Photogrammetry Only

Features and Limits

Plan Gaussian Splats Images per capture Video length per capture
Free ❌ 150 3 min
Basic ✅ 300 5 min
Pro LEGACY ✅ 2000 (1,000 splat) 15 min
Business ✅ 2000 (1,000 splat) 30 min
Enterprise ✅ 2000 (1,000 splat) 30 min
What is Photogrammetry? Object mode photogrammetry uses a technique that involves taking a series of standard photos from various angles. These photos are then uploaded to a more powerful computer, which processes them to create a detailed 3D reconstruction of the object.

Choosing Your Subject

Pre-Capture Preparation

Proper preparation is essential for successful Object Mode captures. Follow these guidelines to ensure the best results.

1Select the Right Subject

  • Surface Detail and Texture: Your object should have plenty of surface detail and texture for the best results. Patterns, artwork, and organic surfaces are particularly effective.
  • Lighting: Even, diffuse lighting is crucial for a successful capture. For objects that are reflective or shiny, try to diffuse the lighting as much as possible to reduce glare.

2What to Avoid

Challenging Subjects:
  • Reflective and blank surfaces can interfere with the capture quality.
  • Mirrors. If your capture includes a mirror, cover it with paper and create a scribble pattern on the paper to avoid reflections.
  • Thin, hairlike structures, which may not capture well.

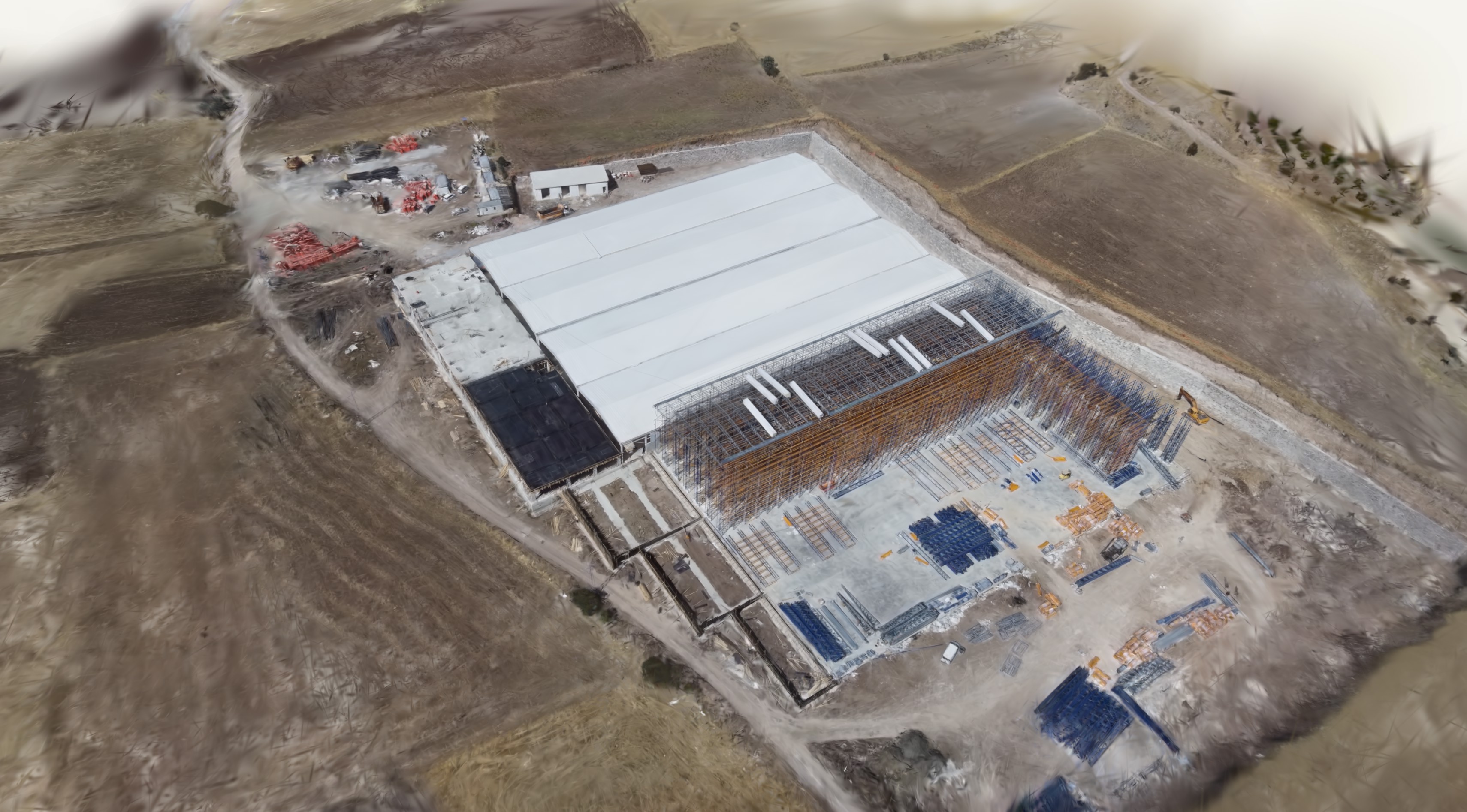

Alternative Processing: If you need to scan these types of challenging subjects, it will be best to process as a Gaussian Splat instead of a traditional mesh for better results.

3Setup and Lighting

  • Object Movement: If the object is rigid, you can move it during the session by flipping or rotating it. Ensure you toggle the Object Masking option to on before processing if you move the object.
Using Your Flashlight: For iOS users, you have the ability to use your flashlight in Free mode. This allows users to scan in darker shaded sections of the object or area.

How to Capture

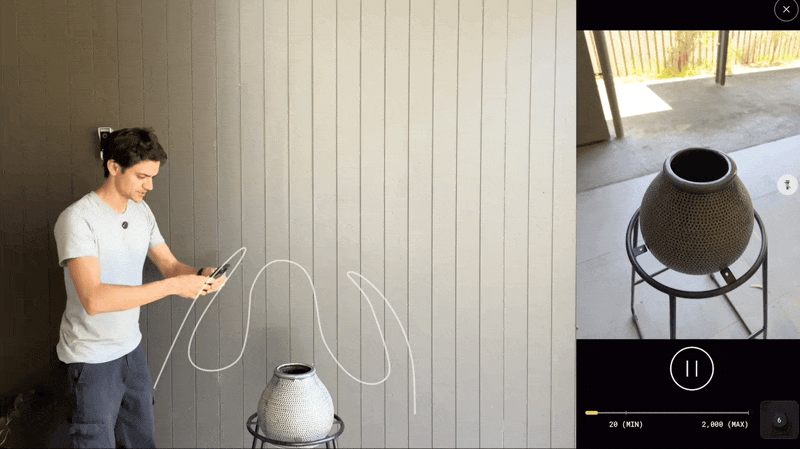

1Capture from Multiple Angles

Photogrammetry Mode requires images of your subject from many different perspectives. Ensure you capture your subject from all angles, including above, below, and from various sides. The more perspectives you provide, the better the capture quality.

Capture angles diagram

2Maintain Overlap

Aim for at least 75% overlap between your photos to help the system accurately register them. It's not necessary for every photo to cover the entire subject; focusing on detailed areas with close-up shots can enhance the overall capture.

Pro Tip: The more perspectives you provide, the better the capture quality. Ensure comprehensive coverage from all angles for optimal results.

3Video Capture (Optional)

While photos provide the highest resolution, you can use your phone's Slo-Mo video feature to capture quickly. This method allows you to collect hundreds of "photos" in just a few seconds.

To create a 3D model from your video, click or tap Upload photos and video and select the Pick video option to upload videos from your phone gallery.

Shutter Settings

Object Mode offers three shutter settings to optimize your captures: Auto, Manual, and Timer.

Auto Mode

With Auto mode, you only need to tap the capture button once. The app will automatically decide when to take photos based on your movement. For capturing a physical space, we recommend using Auto during a single recording session. This approach ensures that images are captured sequentially, which can lead to improved results.

Manual Mode

Manual mode allows you to tap the capture button to take individual frames at your discretion. This setting provides greater control over when each photo is taken. You can combine Manual and Auto settings within the same capture session. For instance, you might use Auto for the majority of the session and add Manual photos for specific details.

Timer Mode

Timer mode automatically captures photos at set intervals, making it ideal for objects placed on a rotating table or turntable. This hands-free approach ensures consistent spacing between captures as the object rotates, resulting in uniform coverage and high-quality reconstructions.

Processing Your Capture

Once you've completed capturing your object, the processing phase begins. The system will analyze all your photos to construct a detailed 3D model.

Processing Tips:

  • Stay connected: Keep WiFi or cellular active during cloud processing.
  • Keep app open: Don't switch to other apps during processing.
  • Object Masking: If you moved the object during capture, ensure Object Masking is enabled before processing.

Troubleshooting & Best Practices

Achieve the best results by following these proven techniques and avoiding common issues.

Common Issues & Solutions:
  • Poor lighting: Ensure even, diffuse lighting across the entire object.
  • Insufficient overlap: Maintain at least 75% overlap between consecutive photos.
  • Reflective surfaces: Diffuse lighting as much as possible or use polarizing techniques.
  • Missing details: Add more close-up shots of intricate areas.
  • Processing failed: Check internet connection and ensure sufficient device storage.

Quality Checklist: Before processing, verify you have captured the object from all angles (above, below, and all sides), maintained consistent lighting throughout, achieved at least 75% overlap between photos, and included close-up shots of detailed areas.
