Free, Pro, Business, Enterprise
Polycam for Web, iOS, and Android
Reprocessing your Floorplan scans as LiDAR allows users to access both types of processing from a single scan. This method is especially useful when you need both an initial overview and detailed information about the room, eliminating the need to scan the area twice.
This feature is only available for Floorplan captures created on your own device. Floorplan captures shared with you or downloaded from the Explore page cannot be reprocessed as LiDAR.
Reprocessing Room Captures
1. Navigate to Your Floorplan Capture: Log into your Polycam account and access the Library. Select the Floorplan capture you want to reprocess.

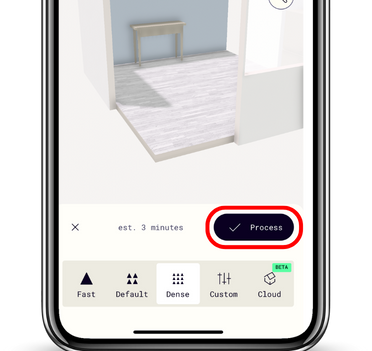

2. Select the Process Button: Click the black Process button on the bottom left-hand side of the navigation bar. Select your LiDAR processing type to begin reprocessing.
3. Select Your Processing Type: Select your LiDAR processing type and click Process to begin.

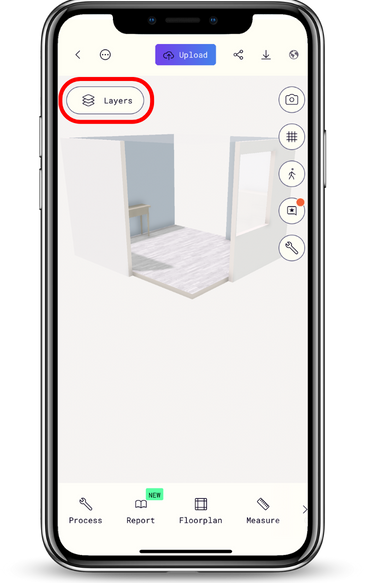

4. Select Layers Tool: Once the reprocessing is complete, you can toggle between Floorplan and LiDAR modes by clicking on the Layers tool at the top left of the capture.

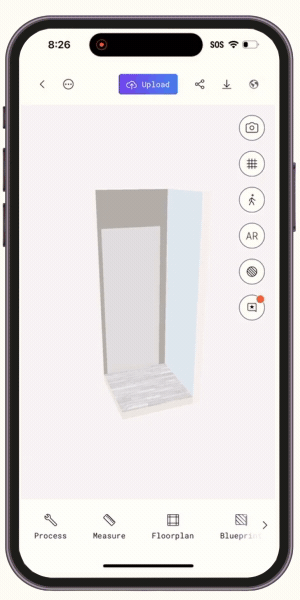

5. Toggle Between Floorplan and LiDAR Modes: Using the Layers tool, you can switch between LiDAR and Floorplan mode.
